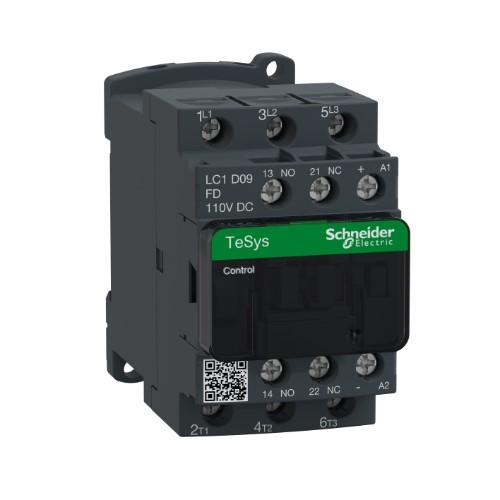

TESYS DECA CONTACTOR 3P(3NO) AC-3 440V 9A 110VDC COIL

LC1D09FD
2004312

Sign in to view price

The TeSys™ Deca Control Series of contactors (formerly known as TeSys D) provides high reliability and performance in a modern, modular approach. TeSys Deca contactors are UL approved to 100 hp 480 V and 160 amperes continuous current. In addition, they provide a modern appearance with new features such as multi-standard screw terminals that accommodate flat, Phillips and Pozidriv screwdrivers, as well as the new UL60335 approved plastics with greater endurance in the presence of heat or fire.
schneider-lc1d09fd_PEP1
schneider-lc1d09fd_Datasheet1
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2004312
Manufacturer Part Number:
LC1D09FD
EAN:
3389110353181
Brand/Manufacturer
SCHNEIDER ELECTRIC
Unit of Measure:
PCS

Specification

Modular version:
no
Number of auxiliary contacts as normally closed contact:
1
Number of auxiliary contacts as normally open contact:
1
Number of normally closed contacts as main contact:
0
Number of normally open contacts as main contact:
3
Rated control supply voltage AC 50 Hz:
0...0 V
Rated control supply voltage AC 60 Hz:
110...110 V
Rated control supply voltage DC:
110...110 V
Rated operation current Ie at AC-1, 400 V:
25 A
Rated operation current Ie at AC-3, 400 V:
9 A
Rated operation current Ie at AC-4, 400 V:
0 A
Rated operation power at AC-3, 400 V:
4 kW
Rated operation power at AC-4, 400 V:
2.2 kW
Type of electrical connection of main circuit:
Screw connection
Voltage type for actuating:
DC
