  6. I/O SYSTEM 750 PLC 4 OUTPUTS 24VDC 100 X 12 X 64 MM
  • (0)
WAGO

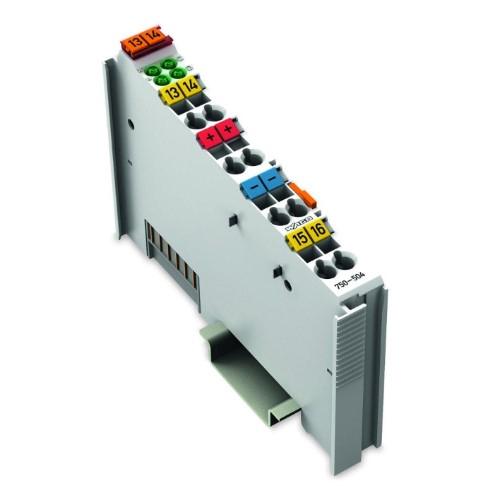

I/O SYSTEM 750 PLC 4 OUTPUTS 24VDC 100 X 12 X 64 MM

750-504
2273233

Sign in to view price

This digital output module transmits control signals from the automation device to the connected actuators. All outputs are short-circuit-protected. Field and system levels are electrically isolated.
wago-750-504_Datasheet1
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2273233
Manufacturer Part Number:
750-504
EAN:
4045454582326
Brand/Manufacturer
WAGO
Unit of Measure:
PCS

Specification

Certified for UL hazardous location class I:
yes
Certified for UL hazardous location class II:
no
Certified for UL hazardous location class III:
no
Certified for UL hazardous location division 1:
yes
Certified for UL hazardous location division 2:
no
Certified for UL hazardous location group A (acetylene):
yes
Certified for UL hazardous location group B (hydrogen):
yes
Certified for UL hazardous location group C (ethylene):
yes
Certified for UL hazardous location group D (propane):
yes
Certified for UL hazardous location group E (metal dusts):
no
Certified for UL hazardous location group F (carbonaceous dusts):
no
Certified for UL hazardous location group G (non-conductive dusts):
no
Degree of protection (IP):
IP20
Depth:
69.8 mm
Digital inputs configurable:
no
Digital outputs configurable:
no
Explosion safety category for dust:
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas:
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible:
yes
Height:
100 mm
Number of digital inputs:
0
Number of digital outputs:
4
Output current:
0.5 A
Permitted voltage at output:
24...24 V
Short-circuit protection, outputs available:
yes
Suitable for rail mounting:
yes
Supply voltage AC 50 Hz:
0...0 V
Supply voltage AC 60 Hz:
0...0 V
Supply voltage DC:
24...24 V
System accessory:
yes
Type of digital output:
Other
Type of electric connection:
Spring clamp connection
Type of output voltage:
DC
Voltage type (supply voltage):
DC
Width:
12 mm
