809S MOTOR PROTECTION RELAY 1-PHASE CURRENT MONITORING UNDER & OVERCURRENT PROTECTION ADJUSTABLE TIME DELAY 1 TO 10 A AC/DC 24/48V AC/DC

809S-C1-10A-48
2206214

Sign in to view price

The Allen-Bradley MachineAlert 809S-C1-10A-48 is a single-phase current monitoring relay designed for precise current detection in industrial applications. Operating within a 1–10A AC/DC range and powered by 24/48V AC/DC, it ensures reliable performance. Its DIN rail mountable design facilitates easy installation in control panels. Ideal for monitoring motor loads, it enhances system protection by detecting overcurrent conditions.
ab-809s-c1-10a-48_Datasheet1
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2206214
Manufacturer Part Number:
809S-C1-10A-48
EAN:
10612598965639
Brand/Manufacturer
ALLEN-BRADLEY
Unit of Measure:
PCS

Specification

Contains function DC-voltage overcurrent:
yes
Contains function DC-voltage under current:
yes
Current measuring range:
1...10 A
Depth:
99.5 mm
Function DC-current hysteresis:
no
Height:
80 mm
Max. permitted off-delay time:
6 s
Min. adjustable off-delay time:
1 s
Number of contacts as change-over contact:
1
Number of contacts as normally closed contact:
0
Number of contacts as normally open contact:
0
Single-phase hysteresis possible:
no
Single-phase overcurrent possible:
yes
Single-phase under current possible:
yes
Supply voltage DC:
24...48 V
Three-phase hysteresis possible:
no
Three-phase overcurrent possible:
no
Three-phase under current possible:
no
Type of electric connection:
Screw connection
Voltage type (supply voltage):
AC/DC
Width:
22.5 mm
With detachable clamps:
no

Reviews

We'd like your opinion! Rate and review this item

There are no reviews from other users.

Recently Viewed

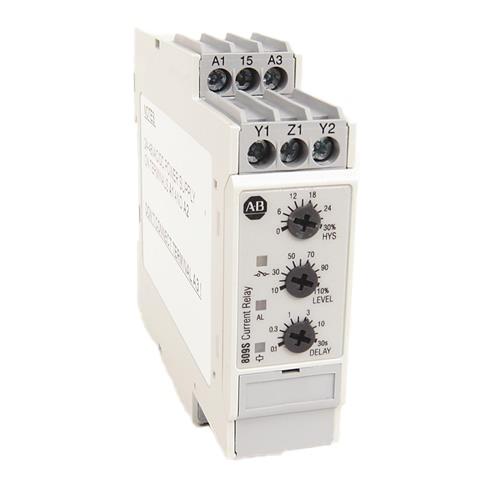

809S MOTOR PROTECTION RELAY 1-PHASE CURRENT MONITORING UNDER & OVERCURRENT PROTECTION ADJUSTABLE TIME DELAY 1 TO 10 A AC/DC 24/48V AC/DC product photo
