OMRON

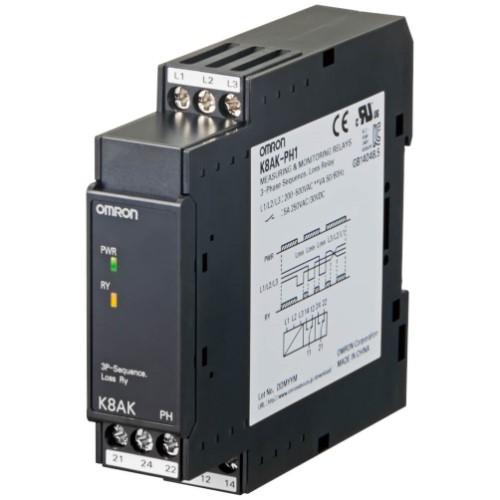

PHASE-SEQUENCE&PHASE-LOSS RELAY 3PHASE 3WIRE DPDT 200-480VAC

K8AK-PH1
2426405

Sign in to view price

The K8AK-PH1 monitoring relay is designed to monitor 3-phase 3-wire supplies. It simultaneously monitors phase sequence and phase loss during start up as well as phase loss during operation. The output relay releases when alarm conditions are detected, and the warning status can easily be monitored using the LED indicator. Suitable for industrial facilities and equipment. Measuring range: 200 to 480 VAC. Power supply voltage is the same as measuring voltage. Operation reaction time: 0.1 s maximum.
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2426405
Manufacturer Part Number:
K8AK-PH1
EAN:
4548583402423
Brand/Manufacturer
OMRON
Unit of Measure:
PCS

Specification

Depth:
100 mm
Function over voltage detection:
no
Function under voltage detection:
no
Height:
90 mm
Max. permitted delay-on energization time:
0 s
Max. permitted off-delay time:
0 s
Min. adjustable delay-on energization time:
0 s
Min. adjustable off-delay time:
0 s
Number of contacts as change-over contact:
2
Number of contacts as normally closed contact:
0
Number of contacts as normally open contact:
0
Phase failure detection:
no
Phase imbalance monitoring:
yes
Phase sequence monitoring:
yes
Rated control supply voltage Us at AC 50HZ:
200...480 V
Rated control supply voltage Us at AC 60HZ:
200...480 V
Rated control supply voltage Us at DC:
0...0 V
Type of electric connection:
Screw connection
Voltage measuring range:
200...240 V
Voltage type for actuating:
AC
Width:
22.5 mm
With detachable clamps:
no
