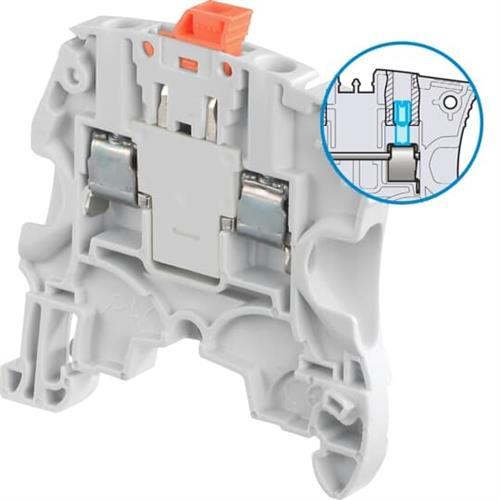

ZS4-S-T2 TERMINAL BLOCK DISCONNECT WITH BLADE GREY (MULTIPLY BY 50 PCS)

MFR Part #: 1SNK505311R0000

Product ID: 2095383

Sign in to view price

Description

The innovative range available in PI-Spring (Push-In and Spring), screw clamp and pluggable technologies with common accessories. Qualified for worldwide applications and severe environments (such as hazardous locations, railways, marine and solar applications.

Attachments

entrelec-1snk505311r0000

Return Policy

All returns must be made within 7 days of purchase.
Valid receipt is required for all returns.
Click Here to view the return policy.

Shipping

Available Shipping Methods:

Product Overview

Product ID:: 2095383
Manufacturer Part Number:: 1SNK505311R0000
EAN:: 3472595053117
Brand/Manufacturer: ENTRELEC
Unit of Measure:: PCS

Specification

Closing plate required:: yes
Colour:: Grey
Connectable conductor cross section fine-strand with cable end sleeve:: 0.2...2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve:: 0.22...4 mm²
Connectable conductor cross section multi-wired:: 0.2...1.5 mm²
Connectable conductor cross section solid-core:: 0.2...4 mm²
Depth:: 53 mm
Internally connected stages:: no
Material insulation body:: Thermoplastic
Mounting method:: DIN rail (top hat rail) 35 mm
Number of clamp positions per level:: 2
Number of levels:: 1
Operating temperature:: -40...110 °C
Rated current In:: 25 A
Rated voltage:: 400 V
Type of cross disconnection:: None
Type of electrical connection 1:: Screw connection
Type of electrical connection 2:: Screw connection
Type of slitting:: Swivelling
Width:: 5.2 mm
With integrated test socket:: no
