  6. ZS95-BL SCREW CLAMP TERMINAL BLOCK FEED-THROUGH BLUE
  • (0)
ENTRELEC

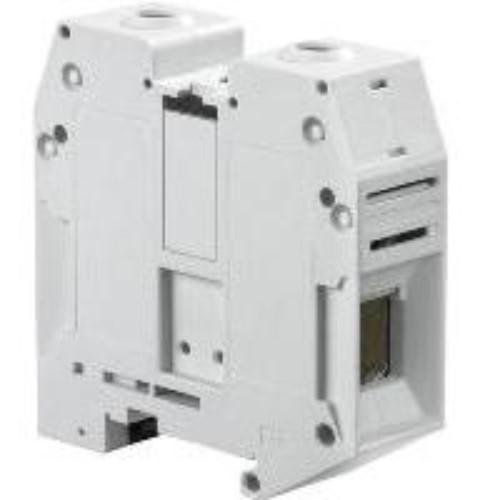

ZS95-BL SCREW CLAMP TERMINAL BLOCK FEED-THROUGH BLUE

1SNK526020R0000
2095478

Sign in to view price

Screw clamp terminals are the most common type of connection method. The wire or conductor is simply pressed against the conductor strip in the block by tightening the screw. Screw terminals accommodate a very wide range of wire or conductor sizes.
entrelec-1snk526020r0000
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2095478
Manufacturer Part Number:
1SNK526020R0000
EAN:
3472595260201
Brand/Manufacturer
ENTRELEC
Unit of Measure:
PCS

Specification

Closing plate required:
no
Colour:
Blue
Connectable conductor cross section fine-strand with cable end sleeve:
35...50 mm²
Connectable conductor cross section fine-strand without cable end sleeve:
35...95 mm²
Connectable conductor cross section multi-wired:
25...35 mm²
Connectable conductor cross section solid-core:
35...120 mm²
Depth:
87 mm
Explosion-tested version 'Ex e':
yes
Inflammability class of insulation material according to with UL94:
V0
Internally connected stages:
no
Material insulation body:
Thermoplastic
Mounting method:
DIN rail (top hat rail) 35 mm
Number of clamp positions per level:
2
Number of levels:
1
Operating temperature:
-40...110 °C
Rated current In:
232 A
Rated voltage:
1000 V
Type of electrical connection 1:
Screw connection
Type of electrical connection 2:
Screw connection
Width:
26 mm
