  6. MS116-25 MANUAL MOTOR STARTER 20-25A
  • (0)
ABB

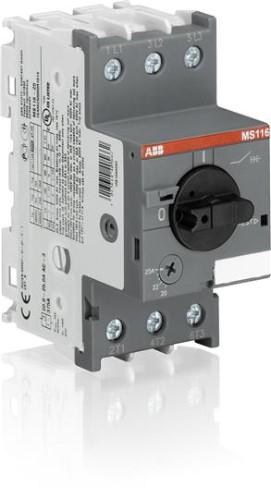

MS116-25 MANUAL MOTOR STARTER 20-25A

1SAM250000R1014
2115759

Sign in to view price

The ms116-25 manual motor starter (Also known as motor protection circuit breaker or manual motor protector) is a compact 45 MM width device with a rated operational current of ie = 25.0 a. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-Circuits
ABB-2115759_PEP1
abb-1sam250000r1014
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2115759
Manufacturer Part Number:
1SAM250000R1014
EAN:
4013614405662
Brand/Manufacturer
ABB
Unit of Measure:
PCS

Specification

Adjustment range undelayed short-circuit release:
375...375 A
Degree of protection (IP):
IP20
Depth:
85.4 mm
Device construction:
Complete device in housing
Height:
97.8 mm
Number of poles:
3
Overload release current setting:
20...25 A
Phase failure sensitive:
yes
Rated operating voltage:
690...690 V
Rated operation power at AC-3, 400 V:
11 kW
Rated permanent current Iu:
25 A
Rated short-circuit breaking capacity Icu at 400 V, AC:
15 kA
Switch off technique:
Thermomagnetic
Type of control element:
Turn button
Type of electrical connection of main circuit:
Screw connection
Width:
45 mm
With integrated auxiliary switch:
no
With integrated under voltage release:
no
With thermal overload protection:
yes
